AFA1 - Ancillary

MULTI-TUBE MANOMETER

A tilting 36-tube manometer for use with the AF1300, AF1300s, AF1450s and AF1600s Subsonic Wind Tunnels, other TecQuipment products, or as a general purpose instrument.

PDF datasheet

OR CALL US TO DISCUSS +44 1159 722 611

Description

MULTI-TUBE MANOMETER

A 36-tube tilting manometer for measuring pressure on models in subsonic wind tunnels and fan test sets, including TecQuipment’s Subsonic Wind Tunnel series. A backboard with graduated scale holds each manometer tube. For safety and convenience, the manometer uses water as the manometer fluid. This is via an adjustable reservoir with fine-adjust hand-wheel held at the side of the equipment. Water colouring is included to aid visibility.

The top of each manometer tube has a connection piece for tubing to connect to pressure tappings on the equipment being monitored. The whole manometer tube assembly is mounted on a swivel. This allows it to be tilted in pre-set increments to increase the sensitivity of measurement. Adjustable feet enable the whole apparatus to be precisely levelled before use. The manometer is supplied with operating instructions, a filling funnel and a spirit level.

Read more +
  • MULTI-TUBE MANOMETER

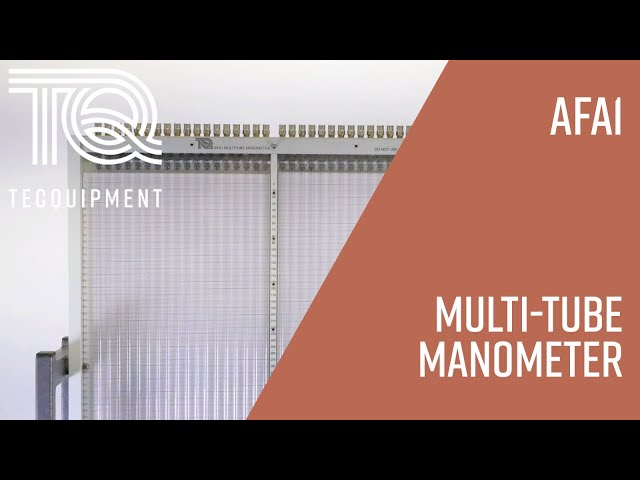

    Multi-Tube Manometer (AFA1) Demonstration
Essential Base Units
AF1300 Subsonic Wind Tunnel 1020

SUBSONIC WIND TUNNEL 305 mm

VDAS AF1300 - Base Unit

A compact, free-standing, open-circuit suction subsonic wind tunnel with a working section of 305 mm by 305 mm and 600 mm long, allowing students to perform advanced study such as analysing boundary layers, performing flow visualisation and observing velocity in the wake, offering extensive teaching and research functionality.

Af1600S SUBSONIC WIND TUNNEL 600mm 1118

SUBSONIC WIND TUNNEL 600mm

VDAS AF1600S - Package

TecQuipment’s largest open-circuit subsonic wind tunnel, with a working section of 600 mm by 600 mm and 1250 mm long, is for the study of advanced aerodynamics theory and research. With the larger size comes greater visualisation and more accurate results, operating at meaningful Reynolds numbers.

AF1450 Subsonic Wind Tunnel 1122

SUBSONIC WIND TUNNEL 450mm

VDAS AF1450S - Package

A sizable open circuit, suction subsonic wind tunnel with a working section of 450 mm by 450 mm and 1000 mm length. It provides a cost-effective balance between being able to carry out advanced aerodynamics study, while having a smaller footprint than the largest of TecQuipment’s wind tunnels.

Available Experiments
AF1300_1450_1600b NACA0012 Aerofoil with Tappings 1118

NACA 0012 AEROFOIL MODEL WITH TAPPINGS

AF1300B - Experiment

A 150 mm chord 300 mm span NACA0012 aerofoil with pressure tappings for use with the AF1300 Subsonic Wind Tunnel.

AF1300_1450_1600b NACA0012 Aerofoil with Tappings 1118

NACA 0012 AEROFOIL MODEL WITH TAPPINGS

AF1450B - Experiment

A 150 mm chord 300 mm span NACA0012 aerofoil with pressure tappings for use with the AF1450 Subsonic Wind Tunnel.

AF1300_1450_1600b NACA0012 Aerofoil with Tappings 1118

NACA0012 Aerofoil with Tappings

AF1600B - Experiment

A 150 mm chord NACA0012 aerofoil with 20 static pressure tappings.

Flat Plate boundary Layer Model AF1300f 1219

FLAT PLATE BOUNDARY LAYER MODEL

AF1300F - Experiment

A flat boundary layer model to illustrate the phenomena of boundary layer development and separation. For use with the AF1300 Subsonic Wind Tunnel.

Alternatives
AFA6 32 Way Pressure Display 0118

32 WAY PRESSURE DISPLAY UNIT

AFA6 - Ancillary

A 32-way pressure measurement and display unit for use with TecQuipment’s Subsonic Wind Tunnels (AF1300, AF1300s, AF1450s, AF1600s).
