MANUAL VOLUMETRIC FUEL GAUGE
An easy-to-use, accurate volumetric fuel gauge for use with TecQuipment’s engine test sets and engines (TD200 and TD300 series).

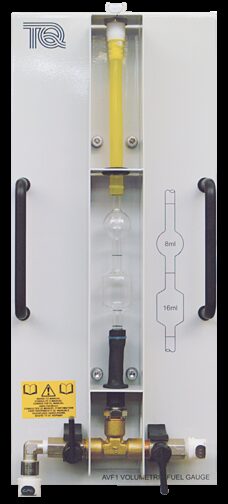

The fuel gauge consists of a precision-calibrated two-bulb pipette and control valves. It mounts on the instrumentation frame of the test set and connects between the fuel tank and the engine under test. All connections are made using self-sealing couplings. The couplings ensure the fuel gauge can be connected and disconnected quickly and effi ciently with minimum loss or spillage of fuel.
Fuel enters the pipette from the tank. The fuel supply from the tank is then cut off via a valve so that the engine draws fuel from the pipette only. Students record the time taken to consume a set volume of fuel, from which they can accurately calculate the fl ow rate.
Suitable for use with petrol or diesel.
