FC300E3 - Experiment
Energy Dissipation

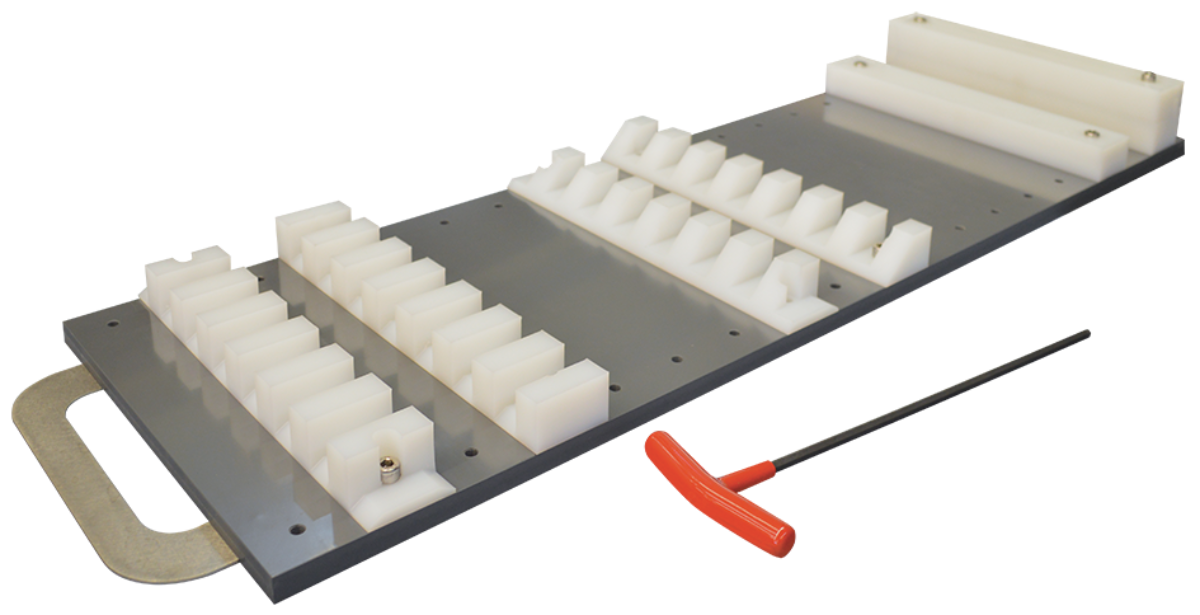

To be used with either the Spillway (FC300e) or the Ogee Weir with Tappings (FC300e2). The apparatus consists of a long apron and a selection of toothed and solid blocks that can be arranged in any combination on the apron. For the study of the dissipation of energy.
Description
Essential Base Units
Spillway
FC300E - Experiment
The spillway comes in four parts: the spillway, detachable ski jump and plain apron with removable toothed block. It is used to observe and calculate flow and energy dissipation over spillways.
The spillway can also be used with the Energy Dissipation (FC300e3) to extend the range of possible experiments.
For use with an FC300 Flow Channel, not included.
Ogee Weir with Tappings
FC300E2 - Experiment
Similar to the Spillway (FC300e) but with the addition of ten pressure tappings placed over the crest and face of the weir. The tappings are connected to a suitable Manometer (FC300w) or 32-Way Pressure Display (FCA1). It is used to study the pressure differences over the crest and face of an Ogee weir.
The spillway can also be used with Energy Dissipation (FC300e3) to extend the range of possible experiments.
For use with an FC300 Flow Channel, not included.
